AKG

MB4

Details
Variations

Miniature boundary layer microphone

This item is currently not available to order online directly from AKG.

Little big mic

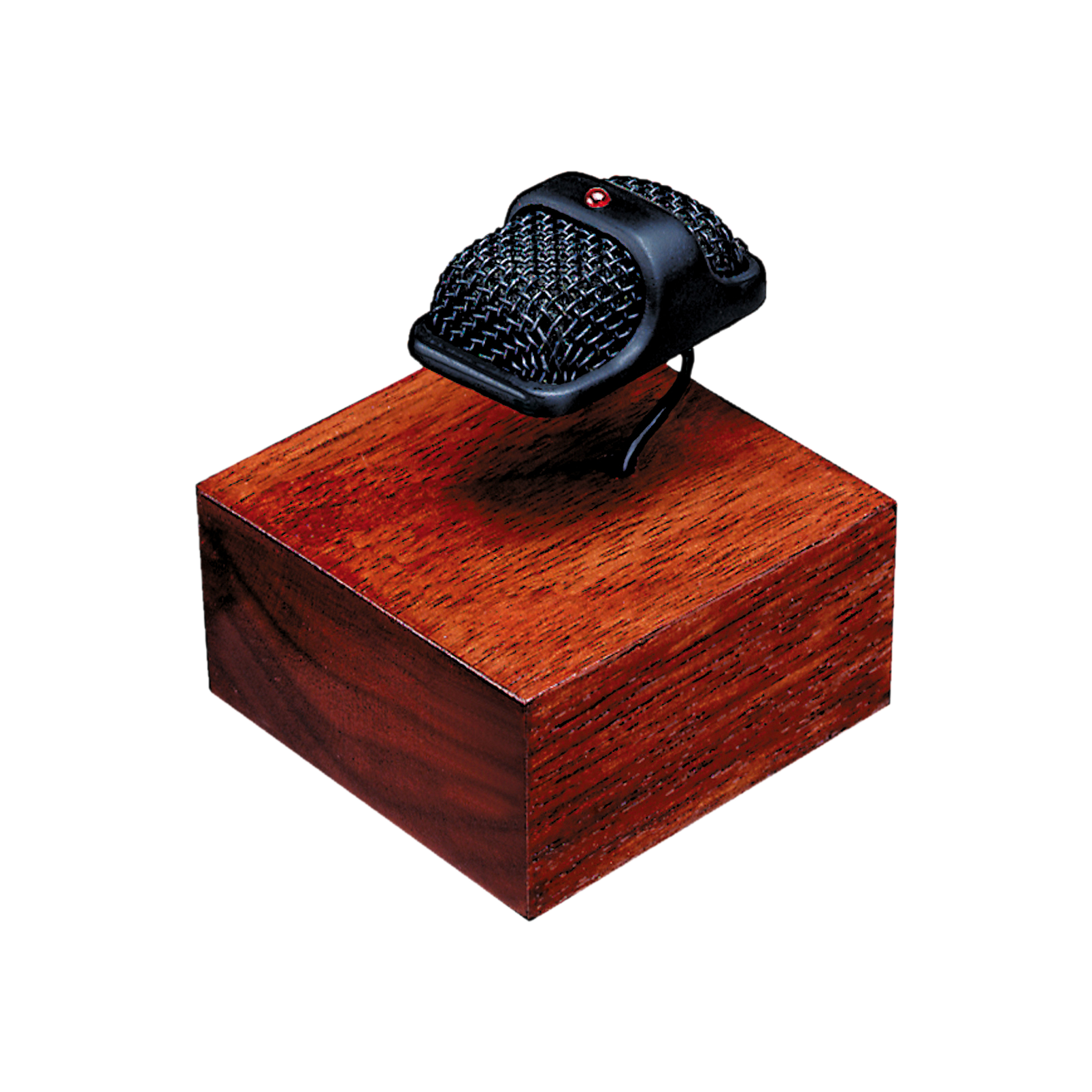

The MB4 is a miniature boundary microphone for table-top installation. Thanks to its supercardioid pickup pattern, the MB4 greatly reduces ambient noise and pickup of room reverberation. The result is a clearer, more intelligible sound for applications such as teleconferencing, distance learning, boardrooms and courtrooms.

The MB4 has a cable leading to an XLR-type output connector with built-in mic electronics. It is powered by 12–48V phantom power and is low-impedance balanced.

Artikel# 3335H00010

Algemene specificaties

Audio frequency bandwidth 50 - 15000 Hz
Equivalent noise level 22 dB-A
Sensitivity 22 mV/Pa
Signal to Noise 72 dB-A
Polar Pattern Supercardioid

Afmetingen / Gewicht

Length 38 mm
Height 15 mm
Net Weight 97 g

Design

Finish satin black

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 12 to 48 V

Applicatie

Conferencing Ja
Presentation Ja

Device

Boundary Layer Microphone Ja
