Professional flush-mount boundary layer microphone w/XLR connector

This item is currently not available to order online directly from AKG.

Inconspicuous assistant

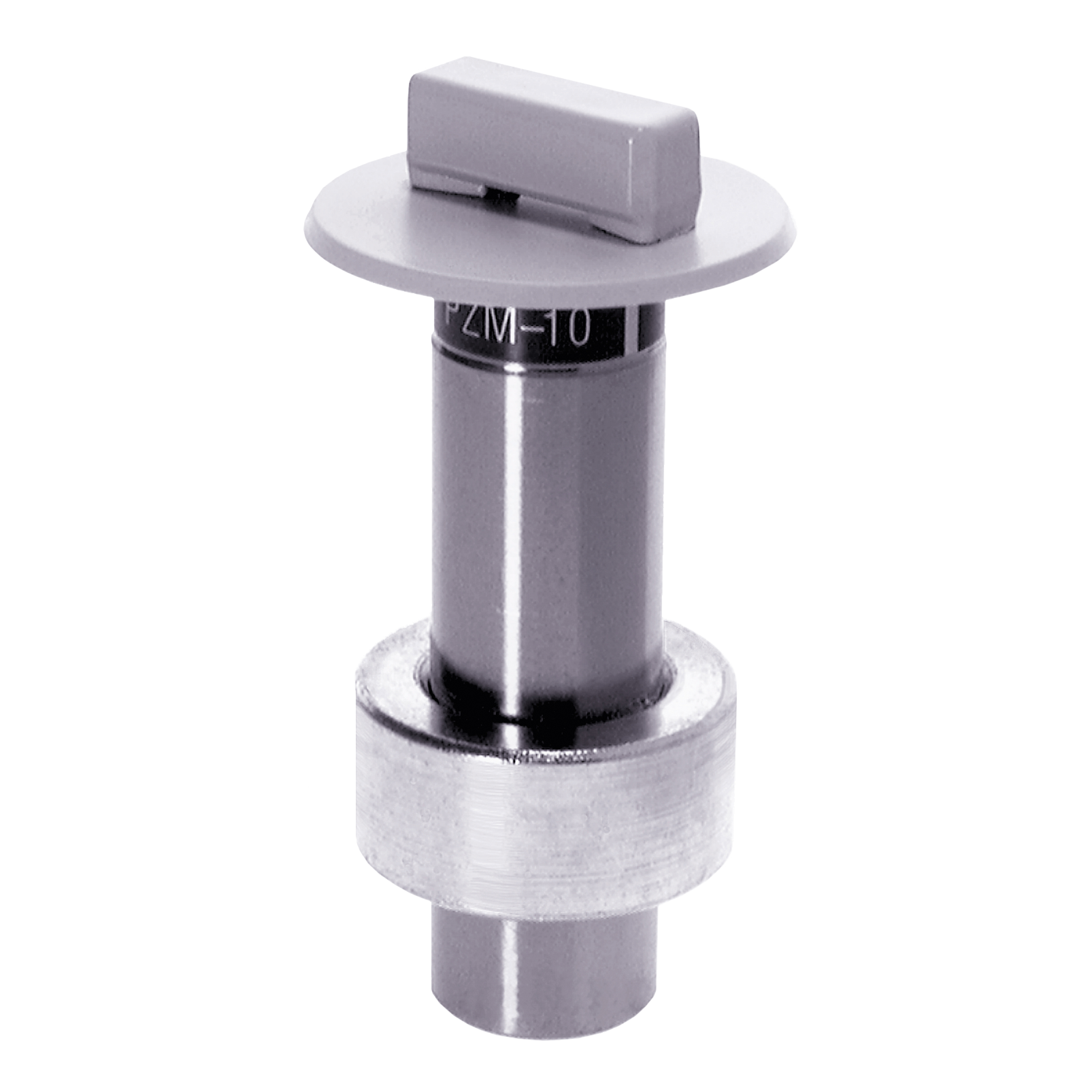

The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously.

Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.

Artikel# 3328H00010

Algemene specificaties

Audio frequency bandwidth 80 - 20000 Hz
Equivalent noise level 26 dB-A
Sensitivity 2.5 mV/Pa
Signal to Noise 68 dB-A
Recommended load impedance 2000 Ohms

Afmetingen / Gewicht

Height 72 mm
Diameter 39 mm
Net Weight 74 g


Finish off-white

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 12 to 48 V


Retail Ja


Boundary Layer Microphone Ja
